Columns
| Column | Type | Size | Nulls | Auto | Default | Children | Parents | Comments | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| id | INT | 10 | √ | null |
|
|
|||||
| userId | INT | 10 | null |
|
|
The id of the user who checked out the item |
|||||
| groupedWorkPermanentId | VARCHAR | 40 | √ | NULL |
|
|
|||||
| source | VARCHAR | 25 | null |
|
|
The source of the record being checked out |
|||||
| sourceId | VARCHAR | 50 | null |
|
|
The id of the item that item that was checked out within the source |
|||||
| title | VARCHAR | 150 | √ | NULL |
|
|
The title of the item in case this is ever deleted |
||||
| VARCHAR | 75 | √ | NULL |
|
|
The author of the item in case this is ever deleted |
|||||
| format | VARCHAR | 50 | √ | NULL |
|
|
The format of the item in case this is ever deleted |
||||
| checkOutDate | INT | 10 | null |
|
|
The first day we detected that the item was checked out to the patron |
|||||
| checkInDate | BIGINT | 19 | √ | NULL |
|
|
|||||
| deleted | TINYINT | 3 | 0 |
|
|
||||||
| isIll | TINYINT | 3 | √ | 0 |
|
|
|||||
| costSavings | DECIMAL | 10,2 | √ | 0.00 |
|
|
|||||
| isManuallyAdded | TINYINT | 3 | √ | 0 |
|
|
Indexes
| Constraint Name | Type | Sort | Column(s) |
|---|---|---|---|
| user_reading_history_work_s_pk | Primary key | Asc | id |
| groupedWorkPermanentId | Performance | Asc | groupedWorkPermanentId |
| PRIMARY | Must be unique | Asc | id |
| sourceId | Performance | Asc | sourceId |
| user_work | Performance | Asc/Asc | userId + groupedWorkPermanentId |
| userId | Performance | Asc/Asc | userId + checkOutDate |
| userId_2 | Performance | Asc/Asc | userId + checkInDate |
| userId_3 | Performance | Asc/Asc | userId + title |
| userId_4 | Performance | Asc/Asc | userId + author |

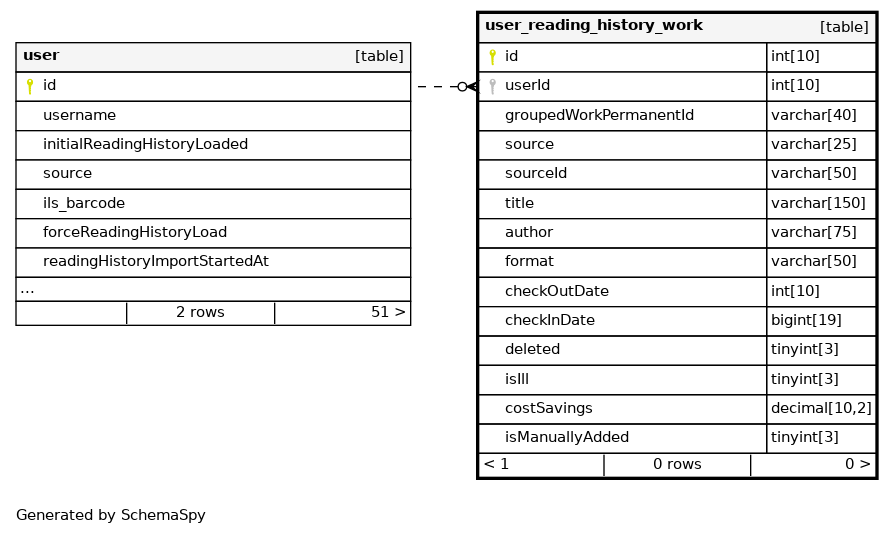

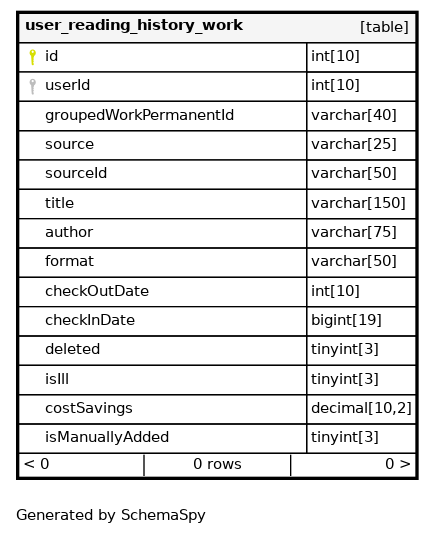

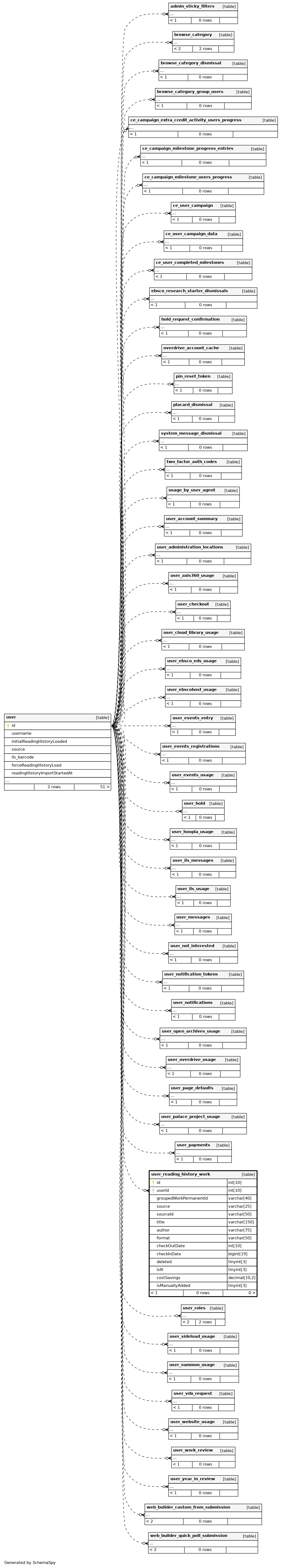

Relationships
Close relationships within degrees of separation
